Woodhead flooring cramps

Image from catalog Image from catalog

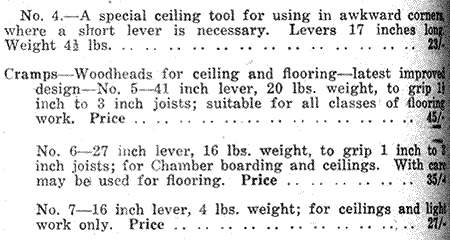

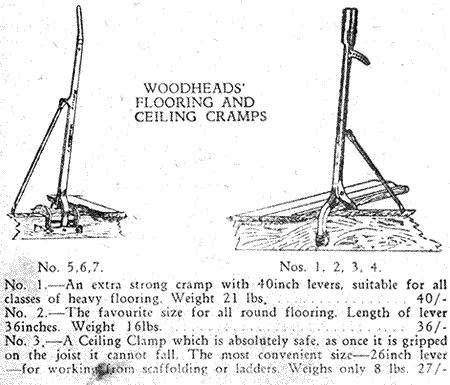

Two clippings from the August 1938 catalogue of Queensland Pastoral Supplies Pty Ltd, showing the range of Woodhead floor and ceiling cramps.
Woodhead No 1 front Woodhead No 1 back

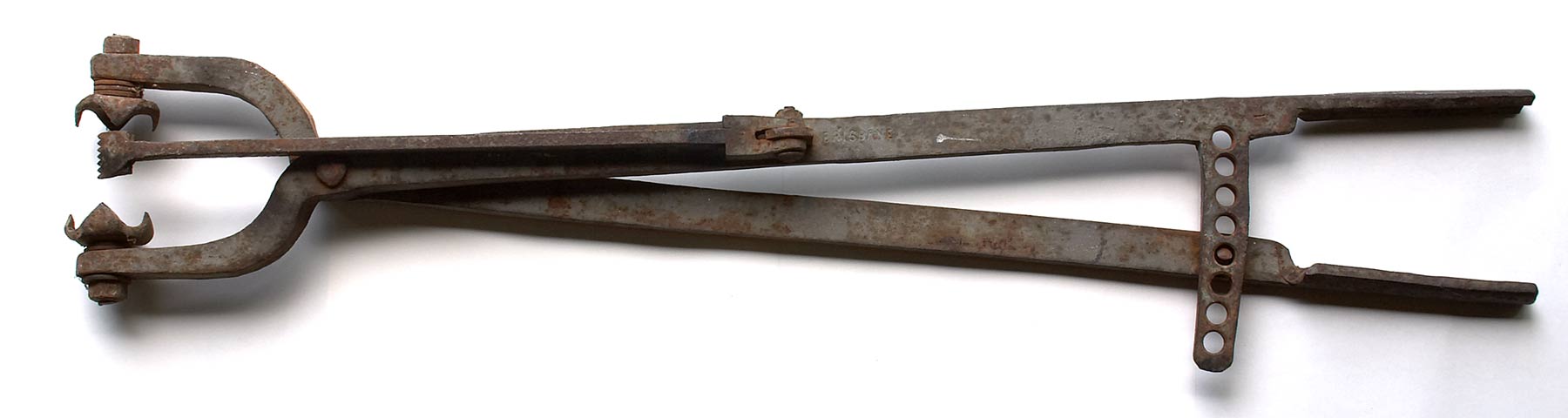

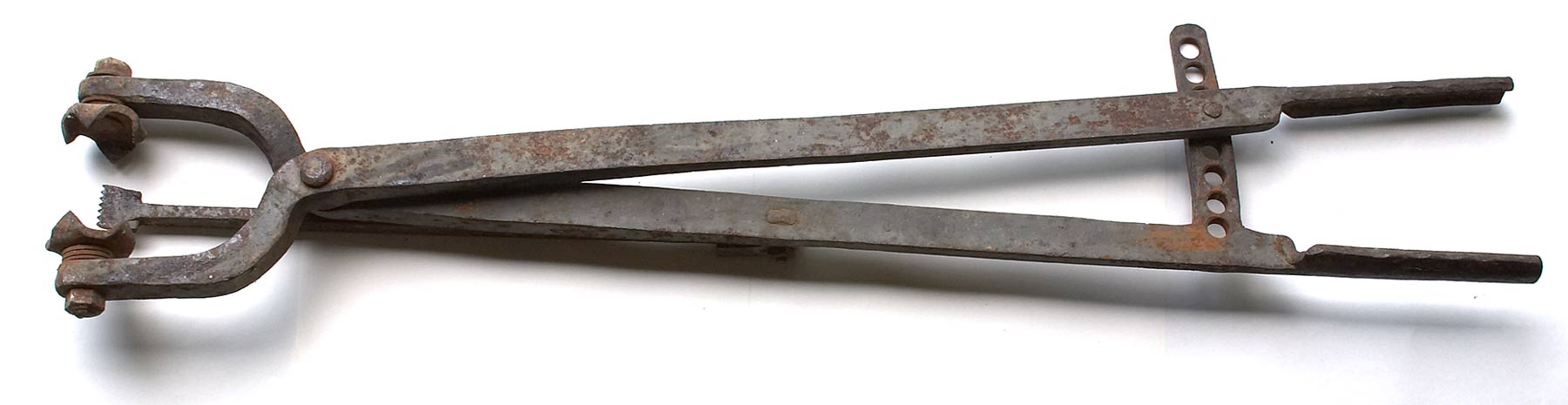

Photographs of a Woodhead No 1 floor cramp. The main parts are forged iron or steel. There are stamps reading J WOODHEAD [hidden by the prop], BRISBANE, and the number 1. Click the images to see larger versions.
